3D RECONSTRUCTION OF MAN-MADE OBJECT FROM POINTS CLOUD

BLOCKSfitTM is the new efficient tool to create « As-Built » for all sizes and types of prefabricated model.

ChARACTERISTIcS

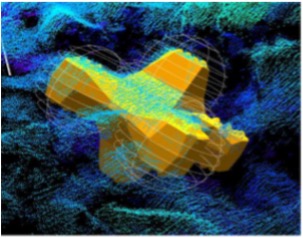

BLOCKSfitTM : BLOCKSfitTM, innovative software, calculate postionning and attitude of blocks (Quay Blocks, Xbloc etc.), from a points cloud.

  • • Adaptable : BLOCKSfitTM handles all sort of data (Multi-Beam, Scanner Laser, Photogrammetry etc.)

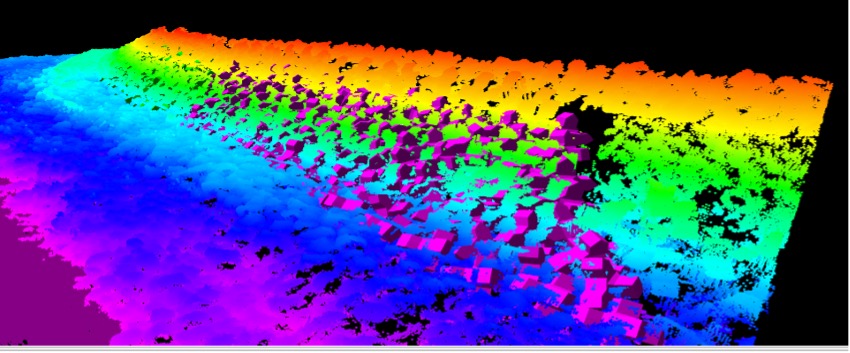

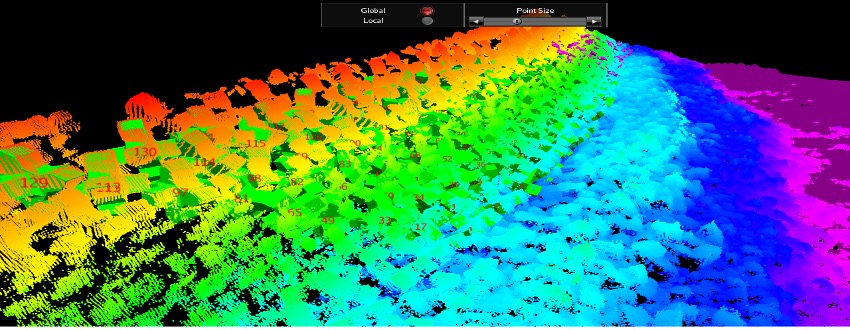

  • • 3D view of blocks : The algorithm of BLOCKSfit can handle any number of point and the viewer can show up to 20 millions points at a time without any lag.
  • • High precision of the algorithm : The dense points cloud allows the algorythm to knwo precisely the position and attitude of any blocks.

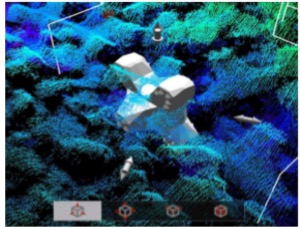

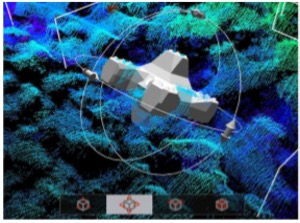

    BLOCKSfit™ calculate automaticaly ((≈10ms) the position of the block. The rersulting model can be seen within blocksfit or software handling DXF, OBJ or PLY format.
  • BLOCKSfit™ detect automatically any specific unit 3D model thanks to its deep learning algorithm, up to 1100 blocks/hour.

Supported Blocks (all sizes)

–    Accropode TM

–    Accropode2 TM

–    Ecopode TM

–    Core-Loc TM

–    Accroberm TM

–    Cube TM

–    BCR TM

–    Xbloc TM

–    Xbloc TM

–    XblocPlus R TM

–    Xbase R TM

–    Dolos TM  (double couche)

…..all sizes and types of 3D (Quay Block, anchor etc.)

BENEFITS

Monitoring of the blocks during and after the construction. « AS BUILT » of the positions and analyze of their mouvements between two dates.

Specifications :

Environment : Windows ( 64 bits)

Inputs :

– CSV
– DXF
– POSIBLOCTM

Outputs :

– CSV, DXF, PLY, OBJ, STL

Position enregistrée par Posibloctm











Position calculated with Blocksfittm

Monitoring of single-layer protections during and after the construction of structures. “AS BUILT” model of final positions and analysis of movements between two states of a project. End-to-end monitoring of a construction.
